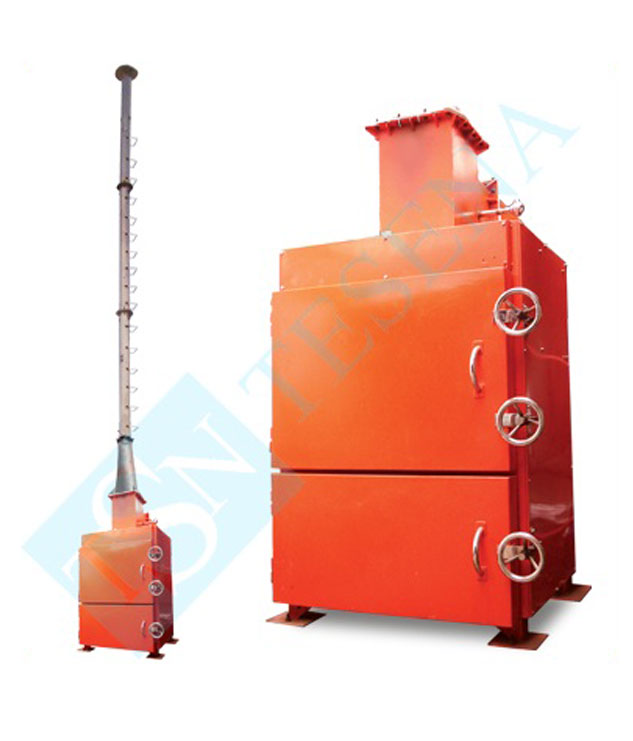

INCINERATOR

TSN 9610-IC

• Specifications :

Burning volume ± 1,0 m³
Burning capacity 60-130 kg/hour
Burner (oil) 3 units
Blower 2 units
Power 220 V/50 Hz
Power Consumption 1500 Watt
Fuel Consumption (diesel fuel) ± 20 litres / hour
Dimension Main Body Appr. 219 L x 123 W x 176 H cm
Dimension Overall Appr. 316 L x 183 W x 245 H cm
Chimney Appr. 240 cm x 3 stacks, Ø 20 cm ; 100 cm x 1 conus stacks, stainless steel
Total Weight Appr. 4000 kg
Tempearture Working temperature ± 1100°C after burning temperature ± 1200°C, 2 sets of thermocouple
Temperature Control Digital thermo control, control panel : manual and automatic
Chamber Double chamber : primary chamber for burning waste, secondary chamber for after burner
Operator Safety Open door control switch, Touchable body, Approx. 40°C - 50°C
Body Construction Steel sheet and pipe, painted with fire retardant paint and stainless steel grille
Refractory SK 34 & SK 36 fire bricks and C-15 castable cement
Isolation Rockwool and asbestos
Fuel Tank 200 litres capacity
Fuel Tank Load Access Dimension Appr. 91 L x 161 W x 239 H cm
